�Model�� CL-350S�
CL-350S, MPEG Transport Stream Fiberoptic Converter

MPEG Stream Converter for DVB-ASI, SMPTE310M, and DVB-SPI

The CL-350S is a robust MPEG transport stream converter that is compliant with both ATSC and DVB standard. It converts MPEG transport stream streams between ASI, SMPTE 31 OM & DVB SPI (LVDS). Any of the three formats at the input is converted into all three formats (ASI, SMPTE 31OM and DVB SPI (LVDS)), available simultaneously, at the output. Output is also converted to the fibre optic signal and can be transported up to 11 Okm (two units are required).

For Sales Inquiries please contact us today: Contact Us!



Features


- All outputs are active simultaneously
- Packet size is selectable between 188 and 204 bytes
- Configuration settings are retained in the event of a power loss
- Interfaces: ASI, SMPTE 31 OM and DVB SPI (LVDS)
- 4K by 9bit buffers are included at each SMPTE 31 OM and DVB SPI (LVDS) output to manage short data bursts and to ensure
smooth conversion
- The SMPTE 31 OM output has a null packet insertion capability that converts lower input bit rate transport streams to the ATSCw
- 19.392654 MHz data rate. Null packet insertion ensures that the converted streams playback smoothly without artifacts
- DVB-ASI Data Rate: 270 MHz +/- 100pm
- Bidirectional Transmission available

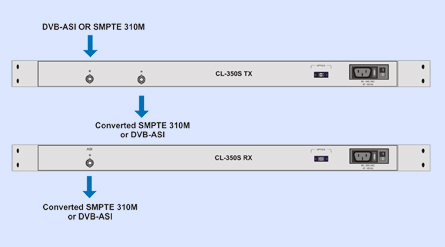

Example Aplication





Model Selection


CL-350S
MPEG transport stream converter with fiberoptic interface, 1 Fiber, 40km
CL-350S/80
MPEG transport stream converter with fiberoptic interface, 1 Fiber, 80km
CL-350S/110
MPEG transport stream converter with fiberoptic interface, 1 Fiber, 110km


Specifications


Dimensions
480mm x 225mm x 44mm
Environment
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 90% RH
Input Power Requirements
Electrical Specifications
Maximum Power: 25W
Supply Voltage Range: 110-240V Auto-sense Internal Power
Power Plug: IEC-C-19
Protection: 3A, 250V Fuse
Cooling Fan Capacity: 6 CFM Back Exhaust
Interface Specifications
ASI
Connector: BNC 75 ohm
Data Rate: 270 MHz +/- 100pm in, +/- 3ppm out
Logic Levels: 800mV +/-10%
Data Rate: Accuracy: 3ppm
SMPTE 310M
Connector: BNC 75 ohm
Data Rate: 19.392654 MHz
Format: Bi-phase-mark coding
Max Jitter: 1ppm
DVB SPI (LVDS)
Connector: DB-25 Female
Max Speed/Clock Input: 13.5 MHz
Max Data Rate: 13.5 Mbps
Min Differential Input: 100mV
Input Termination: 100 ohm
Differential Output: 247mV Min, 340mV Typical, 454mV Max at 100 ohm
load termination
FIBEROPTIC
SC connector
Optical transport of converted signals SMPTE 310M and DVB-ASI up to 110km
LED Indicators
Power, Signal Input Select Optical Signal Detect
