�Model�� CL-870-R-2�

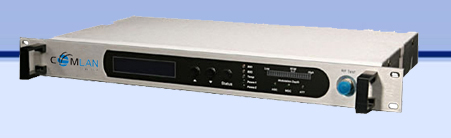

CL-870-R-2, Optical CATV RF Reciever with Dual Internal Redundancy

Cable TV Band RF over Fiber Receiver

The CL-870-R-2F is used for receiving RF cable TV signals (45-870MHz) that are transmitted over an optical fibre. The unit can receive optical signals in either the 1310nm or the 1550nm bands. Designed to work well with the CL-870-T units, the CL-870-R-2F has two optical receivers as well as two power supplies. When one power supply becomes too warm the unit will automatically switch to the second power supply. The second optical receiver adds further redundancy and system reliability. The CL-870-R-2F features an easy to read front panel LCD screen that displays relative operating status and fault information. All operating parameters of the CL-870-R-2F series receivers are designed for high reliability and suitable fore even the most high end applications. The CL-870-R Model has only one optical input.

BUY IT ONLINE - CL-870-R Buy Now!

BUY IT ONLINE - CL-870-R-2F Buy Now!



Features


 Optical Automatic Gain Control (AGC)
 Able to receive optical signals in either 1310nm or 1550nm bands.
 All working parameters controlled by a microprocessor and displayed on screen
 Dual optical recievers with automatic swtiching
 Dual power supply backup with automatic switching.
 Easy to read RF parameters displayed on LCD screen

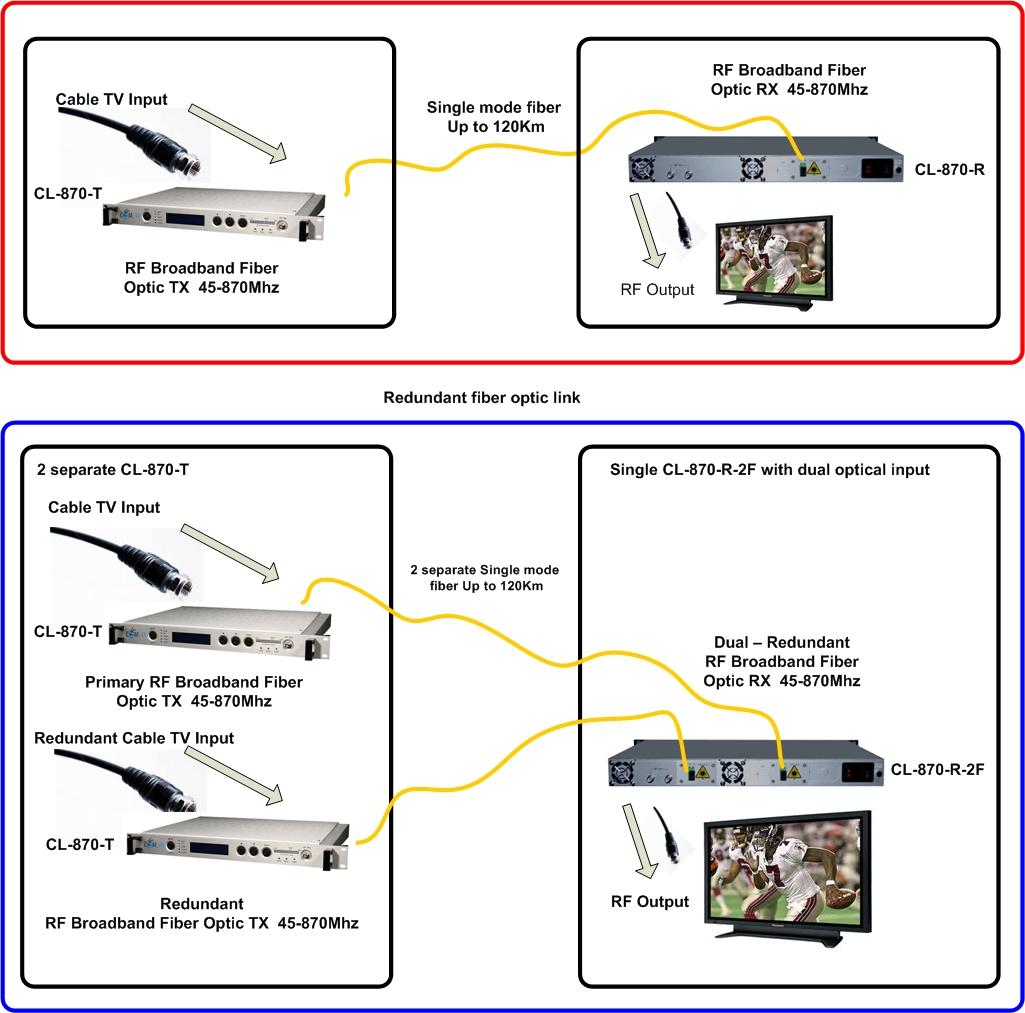

Example Aplication





Model Selection


CL-870-R
Optical CATV RF Reciever with Dual Internal Redundancy
CL-870-R-2F
Optical CATV RF Reciever with duar redundant optical input and dual power supply
CL-870-T
1310nm Direct Modulated AGC Optical Transmitter
CL-870-T-15
1550nm Direct Modulated AGC Optical Transmitter


Specifications


Standards
Laser wavelength (nm) 1310 / 1550
Output power (dBm) -5~+3
Working mode Optical AGC
Echo loss(RL) (dB) ≥>55
Optical fiber connector SC/APC FC/APC
Connection Ports
Work bandwidth (MHz) 45~862
Output level (dBμV) 96 113
Flatness (dB) ≤ <±0.5
Output level adjustable (dB) 0~20(MGC)
Reflect loss (dB) ≥ >16(750MHz)
Output impedance (ΩOhm) 75
Ports
Test channel PAL-D/60ch
CNR (dB) ≥ >52(10Km fiber, -1dBm receive)
CTB (dB) ≤ <-70
CSO (dB) <-63
Channels
Power supply (V) 90~265VAC(-48VDC selectable)
Network management interface RJ45, RS232(Support I.E. & SNMP)
Power Consume (W) ≤ <50(single power work)
Work temp (℃*C) -5~65(Machine temp. control automatically)
Storage temp (℃*C) -40~85
Relative humidity (%) 5~95
Size (") 19×10×1.75 ((W)x(D)x(H))
