ï¿½Modelï¿½ï¿½

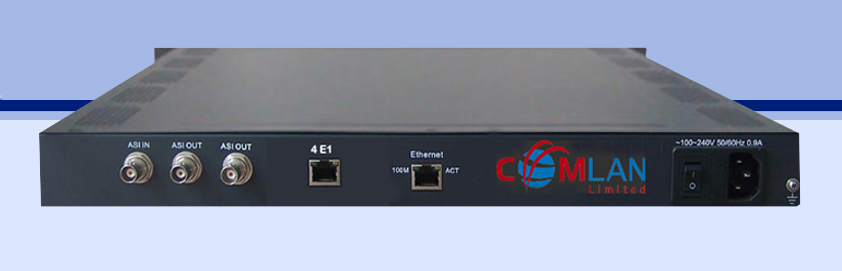

CL-ASI2E1ï¿½

	CL-ASI2E1, ASI to 4 E1 converter and 4 E1 to DVB-ASI

CL-ASI2E1 - DVB-ASI Over 4 E1 lines transport equipment

TheCL-ASI2E1 ASI to E1 converter is designed to carry a DVB-ASI transport stream over up to 4 standard 2 megabit E1 lines. This unit makes it possible to transmit a digital TV program signal through a telecom network. This is possible by combining the up to 4 separate E1 lines into a single pipe for the ASI transport stream. This is useful for TV broadcast signal transport applications where an existing telecom network is present.

Features

Fully Complies with TDM G.703 standard
Supports the two-way adaption of E1 and MPEG-2 ,MPEG-4 H.264 TS
Supports FEC and RS ECC
Supports the Speed/Burst self-adaption of ASI
Supports NMS

Model Selection

CL-ASI2-E1

DVB-ASI to up to 4 E1 converter -Transmitter

CL-E1-2ASI

Up to 4 E1 to ASI converter - receiver

Specifications

Aplications

Transport Video content from TV studios to Cable TV Headend using E1 lines .

Standards

Output 2×ASI,, BNC interface,, 75ΩOhm
4×E1, BNC interface,, 75OhmΩ

Control

NMS control DSNMS software

Miscellaneous

Dimension 483mm x 350mm x 44mm
Wight 6kg
Power Level 90~~264V

Environment

Power consumption 10.5W
Work temperature 0℃~*C~45℃*C
Relative humidity 10~~90%

Connection Ports

Input - 4×E1,, BNC interface,, 75Ω Ohm
2×ASI,, BNC interface 75Ω Ohm
Output 2×ASI,, BNC interface,, 75ΩOhm
4×E1, BNC interface,, 75OhmΩ

Power Requirements

Power consumption 10.5W
Work temperature 0℃~*C~45℃*C
Relative humidity 10~~90%

Network Media

NMS interface
1×IP, ,RJ45 interface,, 10/100M self auto sensing
