	CL2000S, VGA RGB Video to QAM Inserter with Built in Resolution Scaler

ï¿½Modelï¿½ï¿½

CL2000Sï¿½

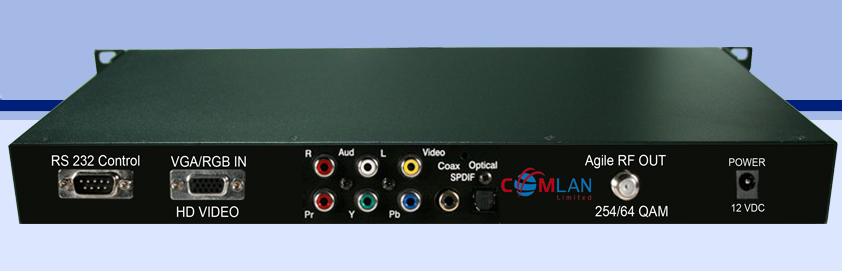

	CL2000S, VGA RGB Video to QAM Inserter with Built in Resolution Scaler

Our CL-2000S creates HD-TV 720p/1080i Channels FROM VGA (RGB) Source-(TV digital QAM channel ) for local coaxial broadcasting

The CL2000-S is a QAM modulator used for the insertion of a standard VGA signal onto a QAM channel for distribution through a Coax network. This modulator features a built in VGA scaler to convert computer screen resolutions to standard HDTV resolutions at either 1080 or 720. This is perfect for digital signal applications. This QAM modulator can be programmed for any digital cable channel (2-135) and can be easily viewed by any digital cable ready HDTV or tuner. The CL2000-S unit offers adjustable amplification of up to 29 dBmV for distribution over an on site broadband cable system. Featuring MPEG-2 true HD encoding at resolutions up to 1080i, the H-VGA-QAM modulator is perfect for digital signal distribution at sports and entertainment facilities, retail and corporate offices, colleges, schools, and worship centres. The CL2000-S VGA QAM modulator is ideal for any HDTV broadband signal distribution system. For Large Order Discounts contact us today: Contact Us!

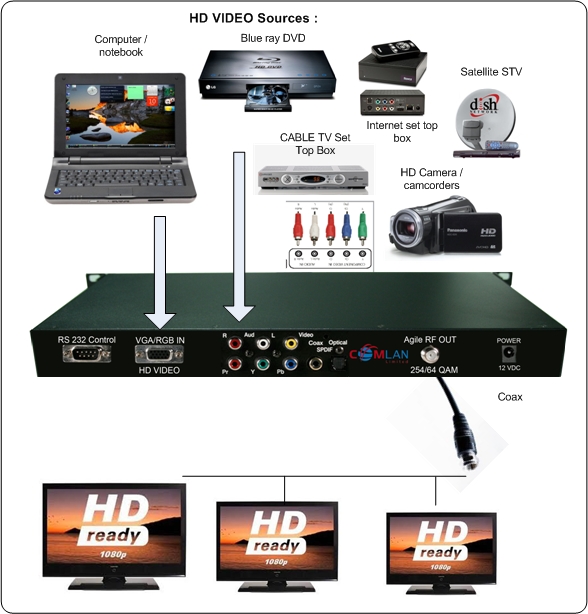

Inserter has many different Video /audio inputs

- HD component,
- HD RGBHV,
- VGA , RGB
- S-Video/Composite video
- Digital coax/optical and stereo audio inputs

Features

Example Aplication

Model Selection

Specifications

Aplications

HD Video Input -
RGB In: RGBHV DB-15 female (1080i/720p/480p/480i), 59.94/29.97 Hz
Component: RCA Y, Pb, Pr (1080i/720p/480p/480i) , 59.94/29.97 Hz
S-Video: Y(Composite), C (Blue Pb) 480i, 29.97 Hz
Composite Video: RCA female (480i), 29.97 Hz

Standards

Encoding
MPEG2 Profile:MP@HL for HD, MP@ML for SD
1080i, 720p, 480p, and 480i resolution, depending on input
Video Encoding bitrate 18 or 25 Mbps
MPEG1, Layer 2 audio
Modulation -
Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1) MER 38 dB typical
RF -
‘F’, female, 75 ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dBmV typical output power, attenuated in 5 steps, approx 4 dB

Connection Ports

DB-9 male, RS-232 data link to control system
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
Front Pane control -
Power button
Setup, Select and directional buttons for menu setup
Menu LCD, 2 lines of 20 blue characters each

Ports

Data Port - RS232

Channels

RF Channels - 1-125

Video Input

Analog Video -
Component: RCA Y, Pb, Pr (1080i/720p/480p/480i) , 59.94/29.97 Hz
S-Video: Y(Composite), C (Blue Pb) 480i, 29.97 Hz
Composite Video: RCA female (480i), 29.97 Hz
RGB In: RGBHV DB-15 female (1080i/720p/480p/480i), 59.94/29.97 Hz

Audio

Audio -
Digital SPDIF: Coax and TOSlink optical output, PCM 48K sample rate
Analog L and R: 2 stereo RCA female jacks
Inputs assignable to video inputs
EAS
GPI inputs switch AV to composite video and assigned audio

Dimensions

8.5” [216mm] wide x 1.73” [62mm] height (1RU) x 6.0” [153mm] deep
1.5 lbs [0.68kg]

Regulatory Compliance

FCC Class B, ROHS, meets California standards
